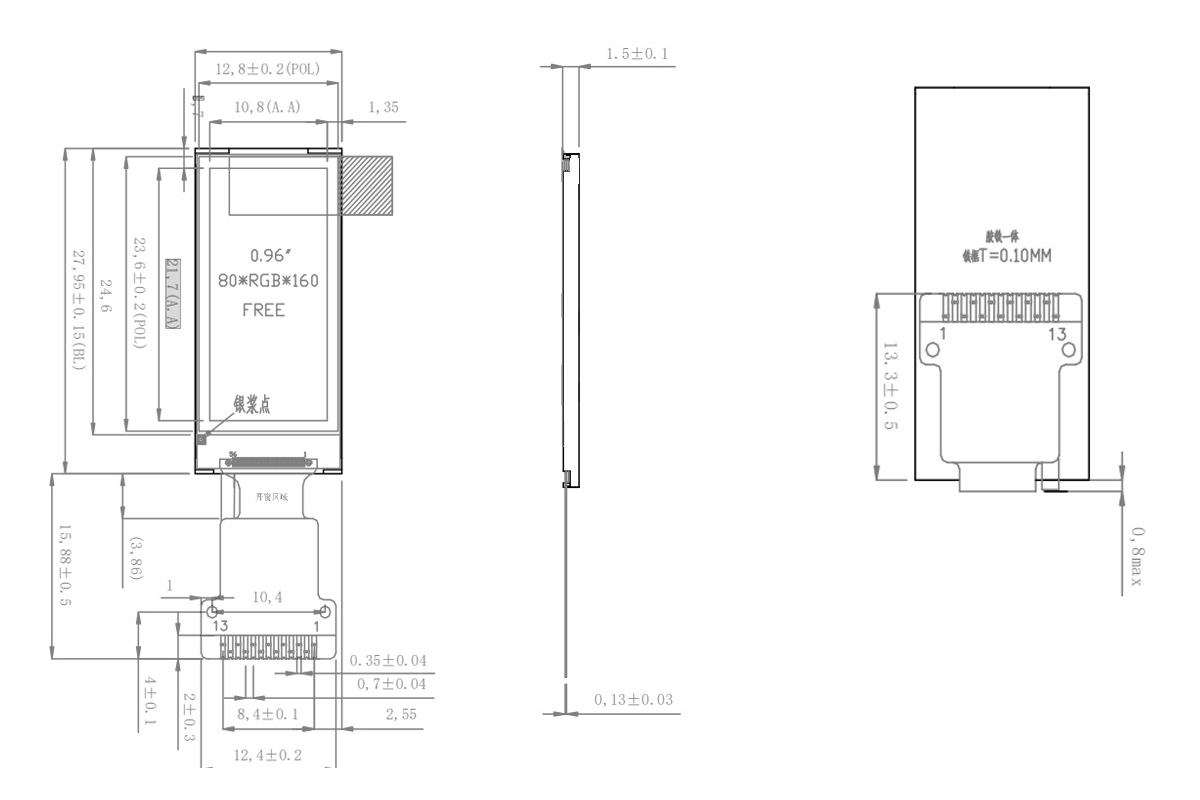

+ 0.96 nti lcd zaub screen RXL0096091-A Interface SPI
Khoom Taw Qhia
Qhia txog kev hloov pauv 0.96 nti LCD zaub npo, kev siv thev naus laus zis uas yuav hloov txoj hauv kev koj pom thiab cuam tshuam nrog koj cov khoom siv. Nrog rau qhov kev daws teeb meem zoo kawg nkaus ntawm 80 * 160, lub vijtsam zaub no tau lees paub qhov pom pom tseeb uas yuav ua rau koj txaus siab. Txawm hais tias koj siv nws nyob rau hauv cov khoom siv xws li cov kauj-toog npab ntse thiab watches, mobile them nyiaj terminals, lossis txawm nyob rau hauv kev lag luam tswj kev lag luam, qhov ntau yam tshuaj ntsuam no yog tsim los ua kom muaj kev ua tau zoo tshwj xeeb hauv txhua qhov xwm txheej. Nruab nrog SPI interface thiab khav theeb zoo kawg li ci ntsa iab ntawm 400 nits, peb lub vijtsam LCD ua kom muaj kev sib txuas tsis sib haum thiab pom kev zoo dua hauv txhua qhov teeb pom kev zoo.
Ib qho ntawm cov yam ntxwv tseem ceeb ntawm peb lub vijtsam LCD yog nws qhov kev siv lub teeb pom kev zoo tshaj plaws, uas txhim kho qhov pom kev pom thiab ua kom pom kev ua tau zoo hauv ntau qhov chaw. Qhov kev siv thev naus laus zis no tau hloov pauv txoj hauv kev uas koj tau ntsib koj cov khoom siv digital, muab kev paub txog kev pom zoo uas dhau txhua qhov kev cia siab. Los ntawm cov teeb pom kev zoo sab nraum zoov mus rau qhov tsaus ntuj nyob hauv qhov chaw, lub vijtsam ntse no kho qhov tsis muaj zog, tsim cov duab zoo nkauj thiab zoo li lub neej uas paub tseeb tias yuav tawm mus ntev.
Tsis tsuas yog peb lub 0.96 nti LCD zaub screen ua tau zoo hauv kev pom zoo, tab sis nws kuj muaj ntau yam kev siv. Nws kev sib raug zoo nrog cov khoom siv hnav xws li cov hlua tes ntse thiab cov watches qhib lub ntiaj teb tshiab ntawm qhov muaj peev xwm thaum nws los txog rau kev saib xyuas kev noj qab haus huv ntawm tus kheej thiab kev saib xyuas kev noj qab haus huv. Xav txog kev siv zog taug qab koj lub plawv dhia, suav cov kauj ruam, thiab cov qauv pw tsaug zog - txhua yam yooj yim tso tawm ntawm lub vijtsam compact thiab vibrant. Nrog rau qhov screen no, nyob rau saum koj lub hom phiaj kev noj qab haus huv yeej tsis yooj yim dua.
Tab sis qhov ntawd tsis yog tag nrho - peb lub vijtsam LCD kuj ua rau cov kev xav tau hloov zuj zus ntawm kev lag luam them nyiaj mobile. Nrog nws qhov tshwj xeeb tso saib zoo, nws ua kom ntseeg tau tias koj cov nyiaj them poob haujlwm yog seamless thiab ruaj ntseg. Txawm hais tias koj tab tom siv koj lub chaw them nyiaj mobile hauv lub khw muag khoom lossis lub khw muag khoom noj khoom haus, qhov screen zaub no tau lees tias koj cov neeg siv khoom yuav tsis muaj teeb meem nyeem cov ntsiab lus ntawm kev sib pauv, ua rau cov txheej txheem them nyiaj smoother thiab ua haujlwm zoo dua.
Ntxiv rau nws cov ntawv thov hauv cov khoom siv coj los siv thiab cov chaw them nyiaj mobile, peb lub vijtsam LCD yog qhov haum rau kev tswj hwm kev lag luam. Nrog nws zoo kawg li ci ntsa iab thiab durability, nws tiv taus cov kev xav tau ntawm kev lag luam ib puag ncig effortlessly. Txawm hais tias nws yog kev ua haujlwm ntawm cov tshuab hnyav lossis kev saib xyuas cov txheej txheem nyuaj, qhov screen zaub no muaj kev ua tau zoo thiab raug, muab cov neeg ua haujlwm nrog cov ntaub ntawv tseem ceeb hauv lub sijhawm.
Ntawm peb lub hauv paus, peb siv zog los muab peb cov neeg siv khoom nrog cov thev naus laus zis tshiab uas tshaj lawv qhov kev cia siab. Peb lub 0.96 nti LCD zaub screen yog ib qho pov thawj rau qhov kev cog lus no, muab qhov tsis sib haum xeeb, kev sib txuas, thiab kev ua haujlwm zoo. Los ntawm kev sib txuas cov kev daws teeb meem ntawm lub xeev nrog SPI interface thiab cov cuab yeej siv hluav taws xob siab, peb tab tom hloov pauv txoj kev koj cuam tshuam nrog koj cov khoom siv digital.
Kev nqis peev hauv peb lub vijtsam LCD niaj hnub no thiab paub txog yav tom ntej ntawm kev siv thev naus laus zis. Txawm hais tias koj yog ib tus neeg nyiam siv thev naus laus zis, tus neeg paub txog kev noj qab haus huv, lossis tus kws tshaj lij kev lag luam, peb lub vijtsam yuav txhawb koj qhov kev paub dhau los rau qhov siab tshiab. Koom nrog peb hauv kev hloov kho lub neej yav tom ntej ntawm kev pom kev pom thiab qhib lub peev xwm ntawm koj cov khoom siv nrog peb 0.96 nti LCD zaub screen!
Peb Cov Kev Pabcuam
Ruixiang muab cov neeg siv khoom nrog cov kev pabcuam hloov kho tau yooj yim: kho qhov screen FPC, tshuaj ntsuam IC, npo backlight, kov npo npog phaj, sensor, kov npo FPC. Yog xav paub ntxiv, thov sab laj nrog peb, peb yuav muab koj qhov kev ntsuam xyuas qhov project pub dawb thiab pom zoo rau qhov project, thiab muaj cov kws tshaj lij R & D cov neeg ua haujlwm ib-rau-ib qhov project docking, txais tos cov neeg siv khoom los nrhiav peb!
E-mail: info@rxtplcd.com
Txawb/Whatsapp/WeChat: +86 18927346997
Lub Vev Xaib: https://www.rxtplcd.com

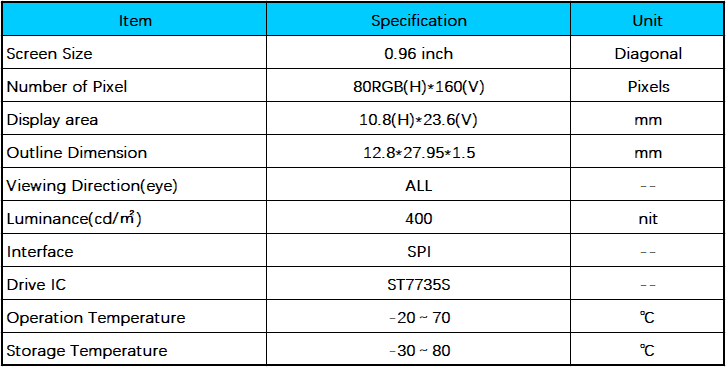

Khoom Specification
Hais txog wb - Ruixiang Touch Display Technology Co., Ltd
LCD Zaub Module
OEM / ODM customization yog txaus siab.
Cov hauv qab no tsis yog txhua qhov ntau thiab tsawg. Yog tias qhov loj me uas koj xav tau tsis nyob hauv daim ntawv teev npe, thov qhia peb qhov loj me uas koj xav tau.
| Loj (inch) | Tshooj No. | Kev daws teeb meem | LCD OD | Saib cheeb tsam (mm) | Interface | IC | FPC | Lus ceeb toom | |
| 2.4 | RXL024074-A | 240 * 320 hli | 42.72 * 58.9 * 2.2 hli | 36.72 * 48.96 | MCU (P) | ib 9341v | 40 PIN | RTP/CTP | Hu rau US |
| RXL024091-A | 240 * 320 hli | 42.72 * 60.26 * 2.6 | 36.72 * 48.96 | MCU/SPI/RGB | wb 7789v | 45 PIN | RTP/CTP | ||
| RXL024102-A | 240 * 320 hli | 42.72 * 60.26 * 3.6 | 36.72 * 48.96 | MCU | wb 7789v | 45 PIN | RTP/CTP | ||
| RXL024102-A | 240 * 320 hli | 42.92 * 60.26 * 3.78 hli | 36.72 * 48.96 | MCU/SPI/RGB | wb 7789v | 45 PIN | IPS | ||
| 2.8 | RXL028052-A | 240 * 320 hli | 50.2 * 69.7 * 2.6 | 43.2 * 57.6 | MCU/SPI/RGB | wb 7789v | 50 PIN | RTP/CTP | |
| RXL028075-A | 240 * 320 hli | 50.5 * 69.7 * 2.6 | 43.2 * 57.6 | MCU/SPI/RGB | wb 7789v | 50 PIN | IPS | ||
| RXL028092-A | 240 * 320 hli | 50 * 69.2 * 2.45 | 43.2 * 57.6 | MCU (P) | ib 9341v | 37 PIN | RTP/CTP | ||
| 3 | RXL030053-A | 240 * 400 hli | 45.4 * 77 * 2.6 | 39.24 * 65.4 hli | MCU/SPI/RGB | ib 9327 | 45 PIN | IPS | Hu rau US |
| RXL030076-A | 240 * 400 hli | 45.4 * 77 * 2.6 | 38.88 * 64.8 hli | MCU/SPI/RGB | ib 9327 | 45 PIN | RTP/CTP | ||
| 3.2 | RXL032054-A | 240 * 320 hli | 55.04 * 77.2 * 2.5 | 48.6 * 64.8 | MCU(P)/RGB | ib 9341 | 40 PIN | RTP/CTP | |
| RXL032077-A | 240 * 320 hli | 55 * 77.2 * 2.6 | 48.6 * 64.8 | MCU/SPI/RGB | wb 7789v | 50 PIN | RTP/CTP | ||
| 3.5 | RXL035055-A | 320 * 240 hli | 76.9 * 63.9 * 3.25 | 70.08 * 52.56 | RGB | HX8238A | 54 PIN | RTP/CTP | |
| RXL035093-A | 320 * 480 hli | 54.66 * 82.94 * 2.3 | 48.96 * 73.44 hli | MCU(P)/RGB | ib 9488 | 40 PIN | RTP/CTP | ||
| RXL035103-A | 320 * 240 hli | 76.9 * 63.9 * 4.5 hli | 70.08 * 52.56 | RGB | HX8238A | 54 PIN | RTP/CTP | ||
| RXL035109-A | 320 * 240 hli | 76.9 * 63.9 * 4.55 hli | 70.08 * 52.56 | RGB | HX8238A | 54 PIN | IPS | ||
| RXL035113-A | 320 * 480 hli | 54.58 * 83.57 * 2.1 | 48.96 * 73.44 hli | MCU/SPI/RGB | ib 9488 | 50 PIN | IPS | ||
| RXL035036-A | 320 * 480 hli | 55.5 * 84.9 * 2.5 hli | 48.96 * 73.44 hli | MIPI | ib 9488 | 20 PIN | IPS | ||
| 4 | RXL040056-A | 480 * 800 hli | 79.38 * 76.43 * 2.8 hli | 70.176 * 71.856 | SPI/RGB | SWB 7701 Stb | 50 PIN | IPS | Hu rau US |
| RXL040078-A | 480 * 800 hli | 57.14 * 96.85 * 2 | 51.84 * 86.4 hli | MIPI | OTM 8019 A | 20 PIN | IPS | ||
| RXL040094-A | 480 * 800 hli | 58.26 * 98.1 * 2.55 | 51.84 * 86.4 hli | SPI + RGB | ib 9806e | 50 PIN | IPS | ||
| RXL040026-A | 480 * 800 hli | 57.15 * 96.85 * 2.3 | 51.84 * 86.4 hli | RGB | TSI 9806 | 30 PIN | IPS | ||
| RXL040104-A | 480 * 800 hli | 57.14 * 96.85 * 2 | 51.84 * 86.4 hli | MCU(P)/RGB | ib 9806g | 50 PIN | RTP/CTP | ||
| 4.3 | RXL043057-A | 480 * 272 hli | 105.4 * 67.15 * 2.86 | 95.04 * 53.86 | 16/18/24 RGB | TIAB SA 7282 | 40 PIN | RTP/CTP | |
| RXL043079-A | 480 * 800 hli | 62.5 * 105.55 * 2.5 hli | 56.16 * 93.6 | 16/18/24 RGB | ib 9806e | 45 PIN | IPS | ||
| RXL043095-A | 480 * 272 hli | 105.4 * 67.15 * 2.85 | 95.04 * 53.86 | 8/24 RGB | TIAB SA 7283 | 40 PIN | Wide temp / IPS | ||
| RXL043105-A | 480 * 800 hli | 62.5 * 105.55 * 2.5 hli | 56.16 * 93.6 | MIPI | ib 9806e | 20 PIN | IPS | ||
| RXL043119-A | 480 * 272 hli | 53.856 * 95.04 | 53.856 * 95.04 | RGB | HX8257-A00 | 40 PIN | RTP/CTP | ||
| RXL043002-A | 480 * 272 hli | 53.856 * 95.04 | 53.856 * 95.04 | RGB | HX8257-A00 | 40 PIN | RTP/CTP | ||
| 4.5 | RXL045058-A | 480 * 854 hli | 61.54 * 110.1 * 2.55 | 55.44 * 98.64 | SPI + RGB | ib 9806e | 45 PIN | RTP/CTP | Hu rau US |
| RXL045080-A | 480 * 854 hli | 61.54 * 110.1 * 2.55 | 55.44 * 98.64 | MIPI | ib 9806e | 20 PIN | IPS | ||
| 5 | RXL050059-A | 480 * 272 hli | 120.8 * 75.9 * 4.2 | 110.88 * 62.83 | RGB | HX8257-A00 | 40 PIN | RTP/CTP | |
| RXL050081-A | 800 * 480 hli | 120.7 * 75.8 * 4.5 hli | 108 * 64.8 | RGB | ILI 6122 + ILI 5960 | 40 PIN | RTP/CTP | ||
| RXL050063-A | 800 * 480 hli | 120.7 * 75.8 * 4.3 | 108 * 64.8 | RGB | ILI 6122 + ILI 5960 | 40 PIN | RTP/CTP | ||
| RXL050020-A | 800 * 480 hli | 120.7 * 75.8 * 4.3.1 hli | 108 * 64.8 | RGB | TSI 6122 | 40 PIN | RTP/CTP | ||
| RXL050096-A | 800 * 480 hli | 120.9 * 78.1 * 2.95 | 108 * 64.8 | 16/18/24 RGB | TIAB SA 7262 | 40 PIN | Wide temp / IPS | ||
| RXL050106-A | 720 * 1280 hli | 67.56 * 122.35 * 2.6 | 62.1 * 110.4 | MIPI | ib 9881c | 30 PIN | IPS HD tau | ||
| RXL050025-A | 720 * 1280 hli | 65.4 * 119.3 * 1.64 | 62.1 * 110.4 | MIPI | / | 25 PIN | |||
| RXL050110-A | 1080 * 1920 hli | 64.3 * 118.3 * 1.49 hli | 61.88 * 110.2 | MIPI | TIAB SA 35596 | 39 PIN | IPS HD tau | ||
| 5.5 | RXL055060-A | 720 * 1280 hli | 71.66 * 129.99 * 1.61 | 68.04 * 120.96 | MIPI | OTM 1283 A | 25 PIN | IPS 1080 P | |
| RXL055082-A | 720 * 1280 hli | 74.28 * 133.21 * 2.6 | 68.04 * 120.96 | 4 Lane MIPI | ib 9881c | 30 PIN | RTP/CTP | Hu rau US | |
| RXL055097-A | 1080 * 1920 hli | 74.28 * 133.21 * 2.6 | 68.04 * 120.96 | 4 Lane MIPI | TIAB SA 35532 | 25 PIN | IPS 1080 P | ||
| 5.6 | RXL056061-A | 640 * 480 hli | 126.5 * 100 * 4.5 hli | 112.9 * 84.67 | 16/18 RGB | / | 40 PIN | RTP/CTP | |
| 7 | RXL070018-A | 800 * 480 hli | 165 * 100 * 3.5 hli | 154.08 * 85.92 | RGB | ILI 6122 + ILI 5960 | 50 PIN | RTP/CTP | |
| RXL070083-A | 800 * 480 hli | 165 * 100 * 5.7 hli | 154.08 * 85.92 | MIPI | ILI 6122 + ILI 5960 | 50 PIN | RTP/CTP | ||
| RXL070098-A | 800 * 480 hli | 165.4 * 104.59 * 5.8 | 152.4 * 91.44 | 16/18/24 RGB | / | 40 PIN | Wide temp / IPS | ||
| RXL070107-A | 1024 * 600 hli | 165 * 100 * 6 | 154.21 * 85.92 | RGB | NT52003 + NT51008 | 50 PIN | RTP/CTP | ||
| RXL070111-A | 1024 * 600 hli | 165 * 100 * 3.5 hli | 154.21 * 85.92 | MIPI | TIAB SA 79007AD+ EK73215BCGA UA | 50 PIN | RTP/CTP | ||
| RXL070114-A | 1024 * 600 hli | 164.9 * 100 * 3.5 | 154.21 * 85.92 | LVDS | 79001/EK73215 BC | 30 PIN | MVA | ||
| RXL070116-A | 1024 * 600 hli | 165 * 100 * 5.8 | 154.21 * 85.92 | 4 Lane MIPI | / | 30 PIN | IPS | ||
| RXL070117-A | 800 * 1280 hli | 103.46 * 160.78 * 2.17 | 94.2 * 150.72 | MIPI | TIAB SA 35521 | 40 PIN | IPS | ||
| RXL070084-A | 800 * 1280 hli | 97.35 * 162.03 * 2.3 hli | 94.2 * 150.7 hli | MIPI | / | 40 PIN | IPS | Hu rau US | |
| RXL070029-A | 1200 * 1920 hli | 98.75 * 160.85 hli | 94.5 * 151.2 | MIPI | / | 40 PIN | IPS | ||
| 8 | RXL080064-A | 800 * 600 hli | 183 * 141 * 5.6 | 162 * 121.5 | 24 RGB | / | 50 PIN | RTP/CTP | |
| RXL080050-A | 800 * 1280 hli | 114.6 * 184.1 * 2.5 | 107.64 * 172.22 | MIPI | / | 31 PIN | IPS | ||
| RXL080120-A | 1024 * 768 | 136 * 174 * 2.5 | 162 * 121.5 | MIPI | 50 PIN | RTP/CTP | |||
| RXL080049-A | 1024 * 768 | 183 * 141 * 6.3 | 162 * 121.54 | LVDS | 50 PIN | RTP/CTP | |||
| 9 | RXL090065-A | 800 * 480 hli | 211.1 * 126.5 * 3.5 | 198 * 111.7 | 24 RGB | / | 50 PIN | RTP/CTP | |
| RXL090085-A | 1024 * 600 hli | 210.7 * 126.5 * 5 | 196.61 * 114.15 | RGB | / | 50 PIN | RTP/CTP | ||
| 10.1 | RXL101086-A | 800 * 1280 hli | 143 * 228.6 * 2.8 | 135.36 * 216.57 | MIPI | / | 40 PIN | IPS | |
| RXL 101100-A | 1200 * 1920 hli | 143 * 228.7 * 2.2 | 135.36 * 216.58 | MIPI | / | 40 PIN | IPS | ||
| RXL101073-A | 1080 * 1920 hli | 142.8 * 228.2 | 135.36 * 216.58 | MIPI | / | 40 PIN | IPS | ||
| RXL101108-A | 1024 * 600 hli | 235 * 143 * 5.2 | 222.72 * 125.28 | LVDS | / | 40 PIN | RTP/CTP | Hu rau US | |
| RXL101112-A | 1024 * 600 hli | 235 * 143 * 5 | 222.72 * 125.28 | RGB | / | 30 PIN | IPS | ||
| RXL101066-A | 1280 * 800 hli | 229.46 * 149.1 * 2.5 | 216.96 * 135.6 | LVDS | / | 40 PIN | IPS | ||
| RXL101121-A | 1280 * 800 hli | 229.46 * 150.2 * 4.5 | 216.96 * 135.6 | LVDS | 40 PIN | RTP/CTP | |||
| 10.4 | RXL104067-A | 800 * 600 hli | 228.4 * 175.4 * 5.9 | 211.2 * 158.4 | 24 RGB | / | 60 PIN | RTP/CTP | |
| 12.1 | RXL121068-A | 1024 * 768 | 279 * 209 * 9 | 245.76 * 184.32 | LVDS | / | 20 PIN | RTP/CTP | |
| RXL121122-A | 1024 * 768 | 260.5 * 203.5 * 10 | 248 * 187 hli | LVDS | / | 20 PIN | RTP/CTP | ||
| RXL121087-A | 1024 * 768 | 260.5 * 204 * 8.4 | 245.76 * 184.3 | LVDS | / | 30 PIN | IPS | ||
| 13.3 | RXL133069-A | 1920 * 1080 hli | 306.3 * 177.7 * 5.4 hli | 293.47 * 165.07 hli | EDP | / | 30 PIN | IPS | |
| RXL133088-A | 1920 * 1080 hli | 305.35 * 187.82 * 2.7 hli | 293.76 * 165.24 | EDP | / | 30 PIN | IPS | ||
| RXL133101-A | 1920 * 1080 hli | 305.2 * 178.1 * 2.6 | 293.76 * 165.24 | EDP | / | 30 PIN | IPS | ||
| 15.6 ib | RXL156070-A | 1920 * 1080 hli | 363.8 * 215.9 * 8.8 | 344.16 * 193.59 | EDP | / | 30 PIN | 1000 TSI | Hu rau US |
| RXL156089-A | 1920 * 1080 hli | 359.5 * 223.8 * 3.2 | 344.16 * 193.59 | EDP | / | 30 PIN | 220nits IPS | ||
| 19 | RXL190071-A | 1280 * 1024 hli | 396 * 324 * 11.2 hli | 376.32 * 301.06 | LVDS | / | 30 PIN | CTP | |
| 21.5 ib | RXL215072-A | 1920 * 1080 hli | 495.6 * 292.2 * 10.6 | 476.64 * 268.11 | LVDS | / | 30 PIN | CTP | |
| RXL215090-A | 1920 * 1080 hli | 489.3 * 287 * 12.8 | 476.06 * 267.8 | LVDS | / | 30 PIN | IPS |
